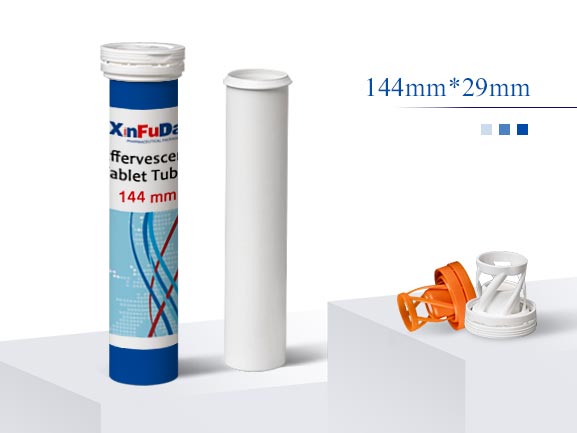

Size: Hight: 144mm Diameter:29mm
Tablet number: 20 tabs (Tablet size- Diameter:25mm;Thickness:5.7mm)
Material: PP Tube & PE cap

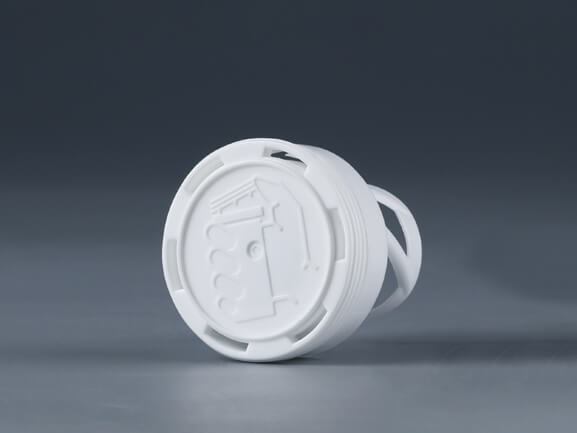

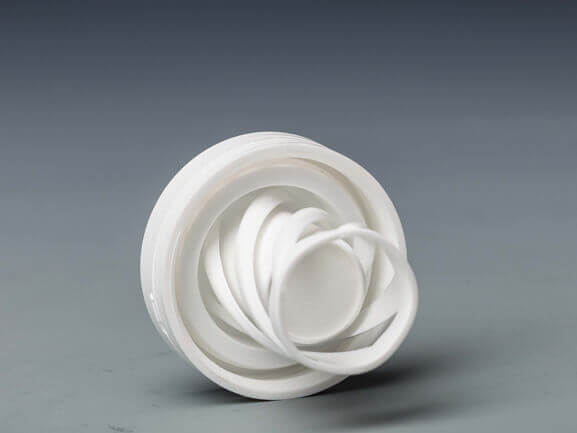

Cap: Spiral cap with desiccant
Desiccant Composition: Silica gel, molecular sieve or the mixture
Certificate: ISO9001:2008 DMF
| Reference | Tube Heght(mm) | Neck Outside(mm) | Neck Inside(mm) | Cap Diameter(mm) | Desiccant Weight(g) | Tube Material |
| Y006 | 92 | 23 | 21 | 28 | 1 | PP |
| Y001 | 84 | 29 | 27 | 34 | 2.1 | PP |
| Y002 | 99 | 29 | 27 | 34 | 2.1 | PP |
| Y003 | 96 | 38 | 36 | 38 | 3.9 | PP |
| Y005 | 133 | 29 | 27 | 34 | 2.1 | PP |
| Y004 | 144 | 29 | 27 | 34 | 2.1 | PP |
Effervescent tube packaging is specially designed to protect moisture-sensitive effervescent tablets, ensuring they maintain their effectiveness and freshness until consumption. This packaging solution provides a secure, airtight environment that preserves the quality of effervescent tablets by preventing exposure to humidity and external contaminants. Ideal for pharmaceuticals, dietary supplements, and wellness products, this packaging offers both protection and convenience..
Moisture-Proof Design:
Airtight Seal: The packaging is engineered with an airtight seal that prevents moisture from penetrating and degrading the effervescent tablets.
Enhanced Protection: Ensures the tablets remain dry and stable, preserving their effervescence and effectiveness.
Convenient User Experience:
Easy Open and Close: Features a user-friendly opening mechanism, allowing consumers to easily access the tablets while maintaining the protective seal.
Portability: Compact and lightweight, making it easy to carry and store, perfect for on-the-go use.
Customizable Options:
Size Variations: Available in various sizes to accommodate different quantities of effervescent tablets, from single-use packs to larger family-sized containers.
Branding Opportunities: Customizable with your brand’s logo, colors, and design elements, enhancing product visibility and appeal.
Versatile Applications:
Wide Range of Uses: Suitable for packaging a variety of effervescent products, including vitamins, minerals, pain relievers, and other health supplements.
Packaging Options:

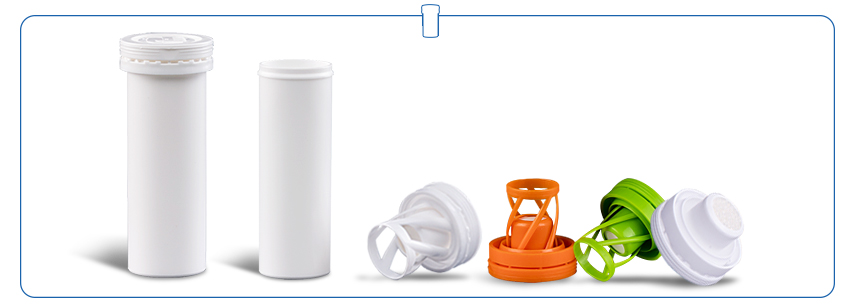

Tubes: Cylindrical tubes with desiccant stoppers or caps for enhanced moisture protection.

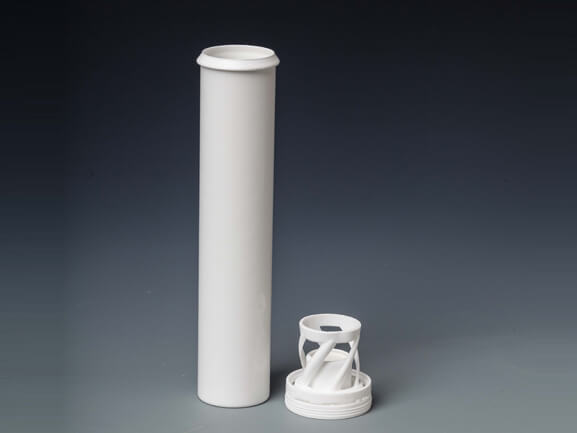

Effervescent tablet tube is made of tube and desiccant cap, desiccant cap contain silica-gel desiccant. Silica-gel desiccant is the only one meet food and through FDA and healthy for human. Silica-gel desiccant can keep tablet away from moist and stay in a dry storage, which is mainly used for effervescent tablets, vitamin C tablets or chew.
1.The desiccant finished product has a moisture content lower than 2%.
2.Desiccant saturated moisture absorption between 24% and 26%
3.Maintain good preservation of the drug
1.Sealing test: Sealed negative pressure instrument, under 40Kpa, 2 minutes.
2.Result: There's no water in the bottle or there's no bubbles
